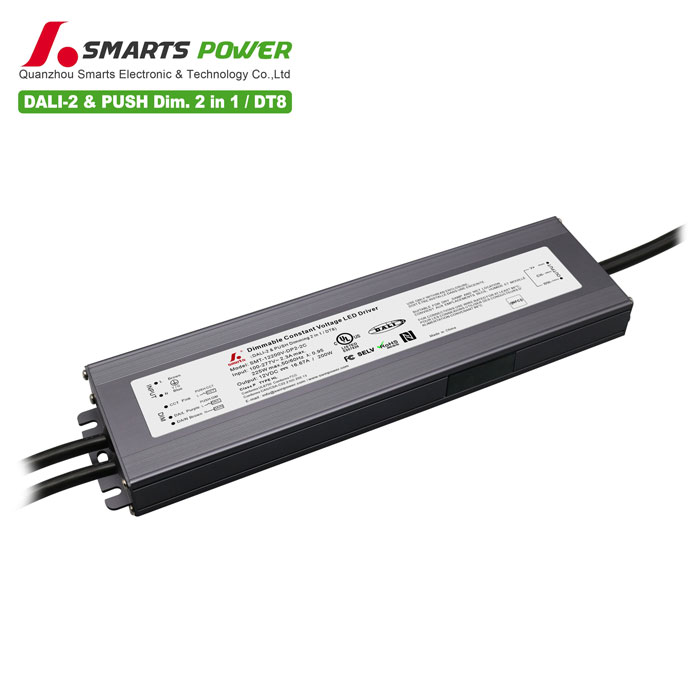

200W 12v/24v constant voltage DALI-2 & PUSH dimmable led strip driver power supply junction box
This DALI-2 intelligent dimming 200W 12v/24v led power supply has passed the DALI-2 dimming protocol IEC62386. The dimming range is between 0-100% without flicker. It is suitable for installation and use in smart led lighting projects, such as hotel lighting projects, and can be used with led light strips.
Specification
| Model | SMT-JB12200V-DP2-3C | SMT-JB24200V-DP2-3C | SMT-JB36200V-DP2-3C | SMT-JB48200V-DP2-3C | |
| Output | DC Voltage | 12V(12-13.5V) | 24V(24-26V) | 36V(36-38V) | 48V(48-50V) |
| Voltage Tolerance | ±0.5V | ||||
| Rated current | 16.67A | 8.33A | 5.56A | 4.17A | |
| Rated power | 200W | ||||
| Voltage Regulation | 0.50% | ||||
| Load Regulation | 2% | 1% | 1% | 1% | |
| Input | Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor(Typ.)@ full load | PF≥0.98@120VAC PF≥0.95@277VAC (Full loading) | ||||
| THD(Typ.)@ full load | ≤10%@120VAC ; ≤15%@277VAC | ||||
| Efficiency(Typ.)@ full load |
89%@120VAC 90.5%@277VAC |
91%@120VAC 93%@277VAC |
91%@120VAC 92.5%@277VAC |
91%@120VAC 92.5%@277VAC |
|
| Protection | AC Current(Max.) | 2.3A | |||
|
No-load power Consumption(optional) |
1.0W(@120V) 1.28W(@277V) |
1.48W(@120V) 1.76W(@277V) |
1.52W(@120V) 1.79W(@277V) |
1.56W(@120V) 1.83W(@277V) |
|
|
Standby power Consumption(optional) |
0.24W(@120V) 0.45W(@277V) |
0.24W(@120V) 0.44W(@277V) |
0.24W(@120V) 0.45W(@277V) |
0.24W(@120V) 0.47W(@277V) |
|
| Inrush Current (Typ.) | 42.4A, 50%, 496us @120VAC;68A, 50% , 380us @277VAC | ||||
| Leakage current | <0.5mA | ||||
| Short Circuit | Hiccup mode, recover automatically after fault condition is removed | ||||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Over temperature | case temp. over 100℃±10℃,output will be off; recovers automatically after temp. drops. | ||||
| Environ-ment | Working TEMP. | -40 ~ +70℃ (see below derating curve) | |||
| Working Humidity | 20 ~ 95%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 ~ +80℃,10 ~ 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 ~ 50℃) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | UL8750 & UL1310 | |||
| Withstand voltage | I/P-O/P:1.8KVAC I/P-FG:1.8KVac O/P-FG:1.8KVac | ||||
| Isolation resistance | I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH | ||||
| EMC Emission | FCC Part 15 B (US) | ||||
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||||
| Others | Net Weight | 1.05kg/pcs | |||
| Dimension | 293*125*40mm (L*W*H) | ||||
| packing | Qty: 20cs/ctn; G.W: 22.7kg/ctn; Ctn size: 330*300*215mm | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||||
 |
 |
 |
 |

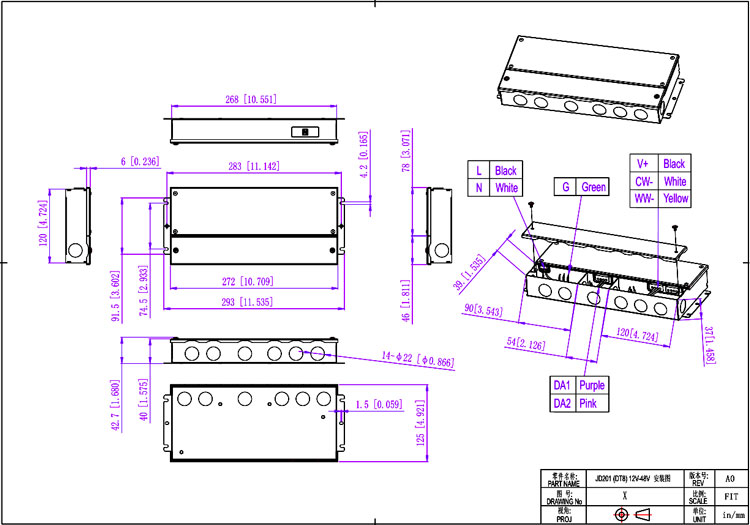

Mechanical Specification
※Input & Output wiring
※Input electronic cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);
※Output : 12V electronic cable 3*16AWG to be connected to LED Light;
24V electronic cable 3*18AWG to be connected to LED Light;
※Dimming cable
※Dimming electronic cable 3*18AWG, Brown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.
Brown (N) is connected to AC (N) while Purple (L) and pink (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
Note: there is external antenna at output side. Don't disassemble!

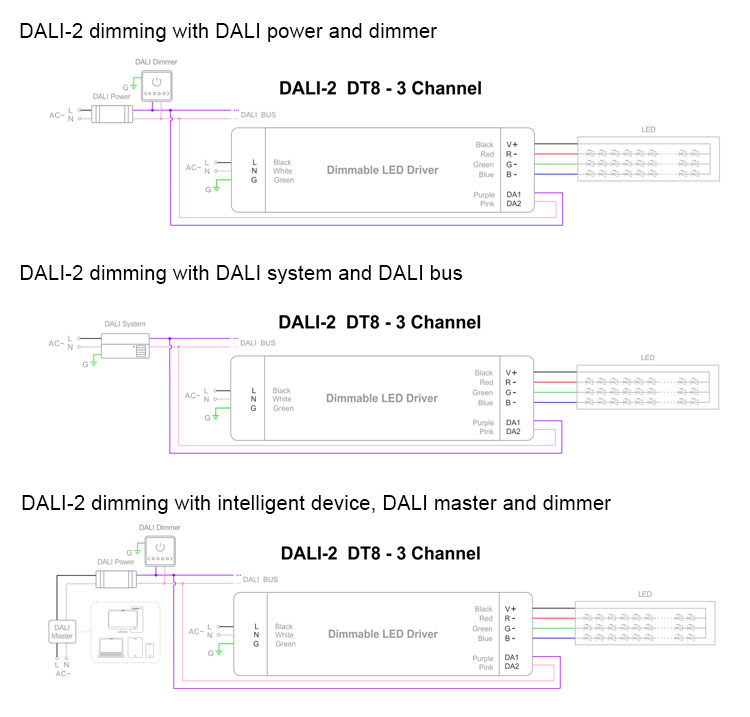

Dimming operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
DALI-2 address setting Operation
※The default address for the DALI-2 LED driver is 001.
※Address settings device:
※Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:
The DALI-2 led drivers’ address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
■ Adjust output voltage Operation
※Adjust output voltage slightly for DALI-2 LED drivers
1) The driver output voltage can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 1.
|
Rated Vol. |
Level 1 |
Level 2 |
Level 3 |
Level 4 |
Level 5 |
Level 6 |
Level 7 |
Level 8 |
Level 9 |
Level 10 |
|
12V |
12.00V |
12.16V |
12.32V |
12.48V |
12.64V |
12.80V |
12.96V |
13.12V |
13.28V |
13.50V |
|
24V |
24.00V |
24.22V |
24.44V |
24.66V |
24.88V |
25.1V |
25.32V |
25.54V |
25.66V |
26.00V |
|
36V |
36.00V |
36.22V |
36.44V |
36.66V |
36.88V |
37.10V |
37.32V |
37.54V |
37.66V |
38.00V |
|
48V |
48.00V |
48.44V |
48.44V |
48.66V |
48.88V |
49.10V |
49.32V |
49.54V |
49.66V |
50.0V |
■ How to set the DALI-2 CV LED driver address by the NFC app or NFC device ?
Simple operation about DALI-2 LED driver address reset and adjusting output voltage slighting by a mobile with NFC APP (set NFC) or NFC handheld device (NFC read & write device: NFC-RW)
