Non-dimmable LED Driver

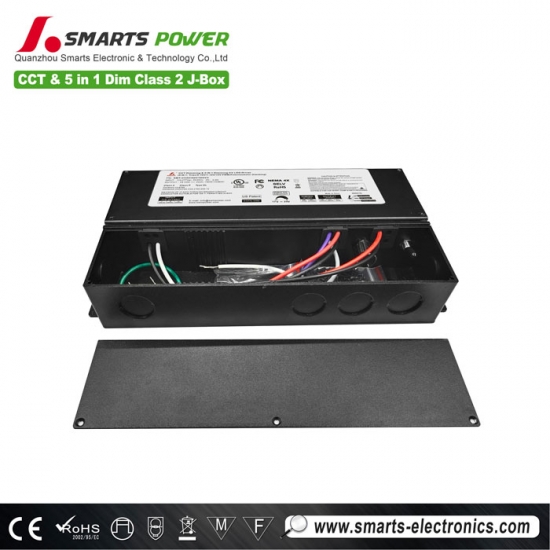

2 colors dimming avaiable UL cUL 5 in 1 dimmable Constant voltage high power class 2 led driver 192W

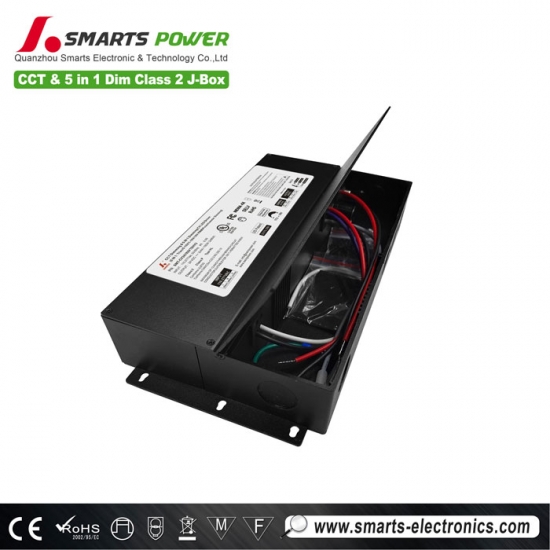

UL cUL 192W Triac & 0-10V dimmable led driver with junction box 2 colors dimming avaiable ,Exclusive patent design of “Clamshell” junction box.

  • item no.:

    SMT-CV24192-VTDHV3
  • brand:

    SMARTS
  • Output Voltage:

    24Vdc 48Vdc
  • Input Voltage:

    100-277Vac
  • Output Power(Watt):

    192W
  • Dimming Mode:

    Triac 0-10V 1-10V 10V PWM Potentiometer dimming
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    J-BOX Driver
  • Size:

    254*132*42.5mm
  • Weight:

    1.86kg
  • Certification:

    UL cUL ROHS
  • Warranty:

    7 Years
inquiry now
product details

2 colors dimming avaiable UL cUL 5 in 1 dimmable Constant voltage high power class 2 led driver 192W


SMT-CV24192-VTDHV3 Multiple dimming driver: Triac/0-10V/1-10V/10V PWM/Potentiometer,high power class 2 LED driver 192W Rated Power 96W*2



  Specification


Model Number

SMT-CV24192-VTDHV3

SMT-CV48192-VTDHV3

OUTPUT

Rated Power

192W (2*96W)

192W (2*96W)

Rated Voltage

24V

48V

Rated Current

2*4A

2*2A

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

INPUT

Voltage Range

100-277V

Frequency Range

47-63Hz

Power Factor(typ.)

0.98@120VAC  0.95@277VAC  Full load

Total Harmonic Distortion

THD< 20%@120VC/277VAC;

Efficiency(Typ.)

87%@120VAC   88%@277VAC

88%@120VAC   89%@277VAC

AC Current(Typ.)

2.0A@100VAC

1.9A@100VAC

Inrush Current(Typ.)

19A ,50%,1.3ms @120VAC ;  38A,50%,960us @277VAC

Leakage Current

<0.5mA/ 120VAC

PROTECTION

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Load

≤120% shut down o/p voltage, re-power on to recover after fault condition removed

Over Temperate

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

ENVIRONMENT

Working Temp.

Tcase=-40 ~ +60 ℃

Max. Case Temp.

Tcase=+90℃

Working humidity

20 ~ 95% RH non-condensing

Storage temp., Humidity

-40 ~ +90, 10 ~ 95% RH

Temp .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

SAFETY & EMC

Safety standards

UL8750, CSAC22.2 No. 250.0-08

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH

EMC Emission

Compliance to FCC part 15  Subpart B

OTHERS

Dimension

254x132x42.5mm (L*W*H)  N.W: 2.5kg

Packing

8pcs/CTN    G.W:17.8KG   SIZE: 325*315*185mm

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Unique Selling Points


      1)Voltage Reduce Output
√Dimming range: 100%-0.01% Ultra Deep Amplitude
√The output voltage peak is in the affordable value of the LED during driver on/off and dimming, no harm to the LED for long-term using, and slow down the speed of lumen depreciation.
√Works with single channel dim to warm LED strip/tape (2 wires).
√Works with two channel CCT warm-dim LED strip/tape (3 wires).


2)Compatible PWM & Voltage Reduce output
√synchronously dimming the LEDs with different starting voltages.
√compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/tape



  Block Diagram

  Mechanical Diagram

  Wiring Diagram


Works with Two channel CCT warm-dim LED strip/tape (3 wires)

1) Triac dimming -Triac/MLV load type   (Notice: Not request neutral wire of dimmer.)

Triac & 0-10V Dimmable J-box 96W


2) 0-10V dimming-only dimming  (Notice: The dimmer cant cut off the power in this connecting way.)

Triac & 0-10V Dimmable J-box 96W


  Related Products

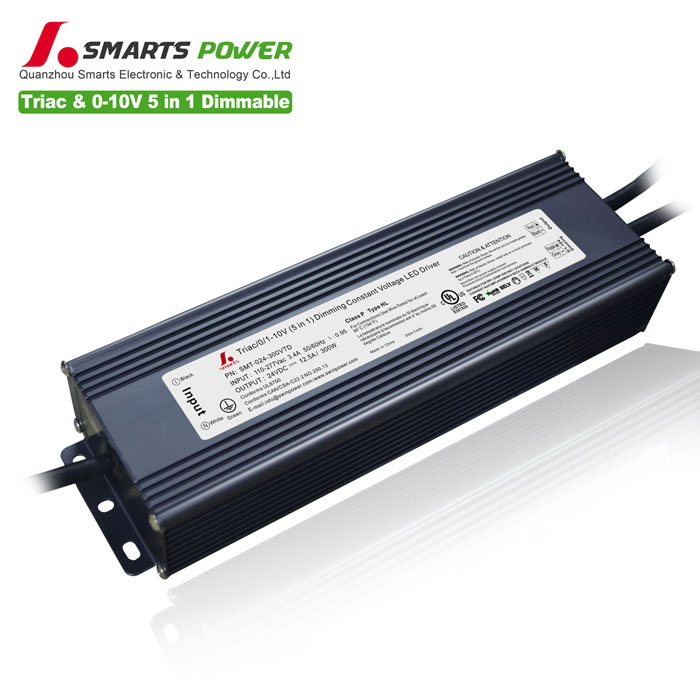

Triac & 0-10V (5 in 1)led driver 300WUL cUL listed Triac & 0-10V (5 in 1)Dimmable Class 2 led Driver 192W  ip67 Triac/0-10V/1-10V/10V PWM/Potentiometer dimming
