| SPECIFICAION | |||||
| MODEL | SMT-012-096VW | SMT-024-096VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 8.33A | 4A | |||
| CURRENT RANGE | 0~8A | 0~4A | |||
| RATED POWER | 96W | 96W | |||
| RIPPLE&NOISE(max) | 150mV | 150mV | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| SETUP RISE TIME | 80ms/110V,220VAC | ||||
| HOLD UP TIME(Typ.) | 60ms/110V,220VAC | ||||
| INPUT | VOLTAGE RANGE | 100~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | 0.95 | ||||
| EFFICIENCY(Typ.) | ﹥87% | ||||
| AC CURRENT(Typ.) | 0.92A/110VAC, 0.86A/220VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof IP67) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | CE ETL Mark(LVD) | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature. | ||||
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. |
|||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||

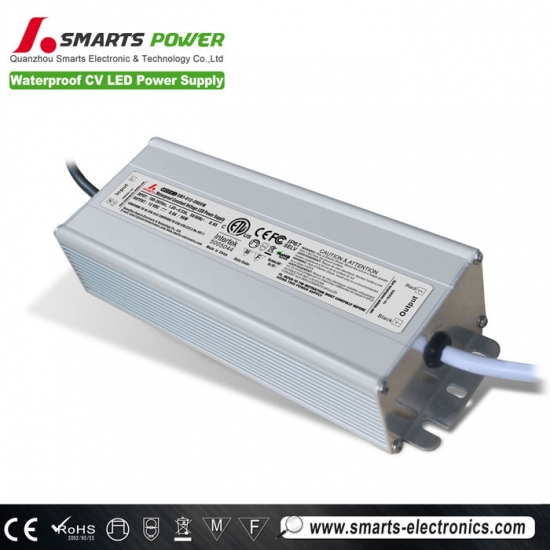

| Label |
 |
||||
 |
 |
 |
 |
 |
|
NOTE
1.All parameters NOT specially mentioned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Our led drivers are widely used for
Indoor LED illuminating lights
LED Neon, LED urban Decoration
LED Lighting Advertising,LED Display
Safety Protection Apparatus
Telecommunications, Networks
Vehicle Lights, Controller Panels
What Service we can supply?
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcome to visit our website
-
OEM/ODM avaliable:
A. Print logo on our product;
B. Customized specification; -
After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competitive price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
