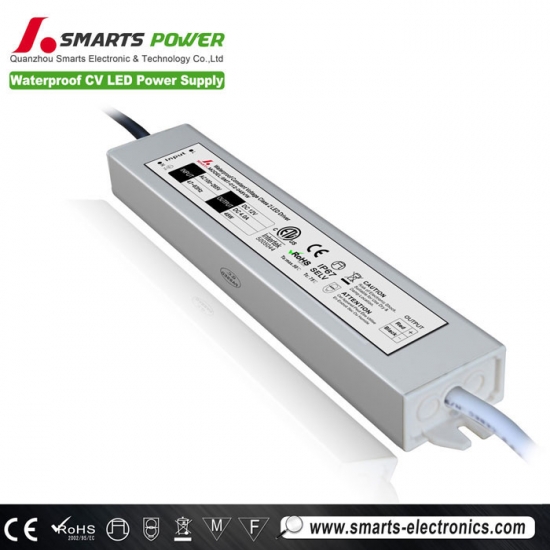

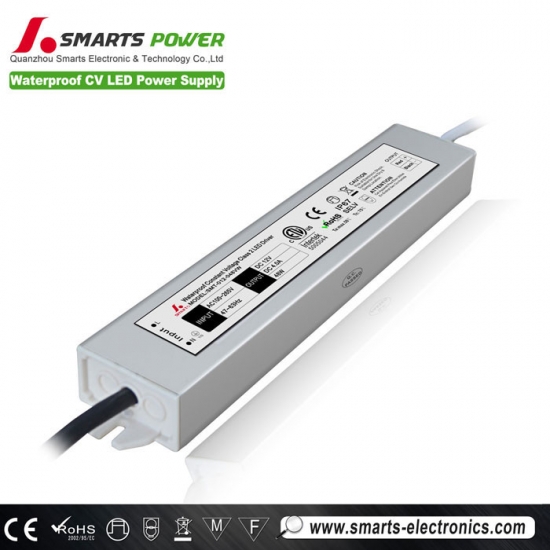

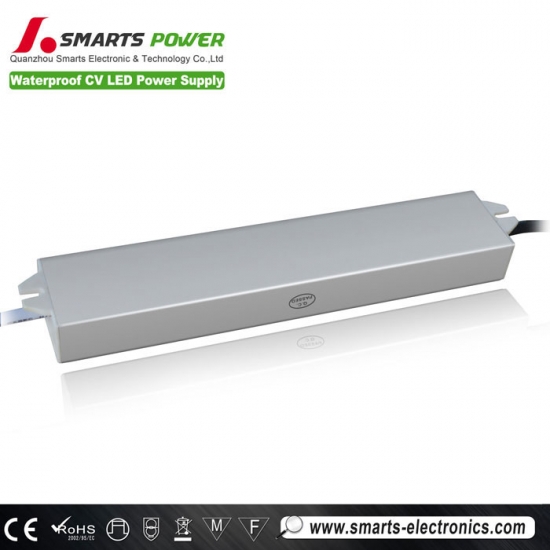

12v 48w ip67 led slim power supply outdoor
Smarts Electronic provides IP67 12V 18W to 60w ip67 slim and thin type led power supply which is suitable for dry, damp, wet location, they should be connected with 12v DC LED lighting application ,such as LED strip ,LED module, panel light, led tape etc.besides, 12v 48w ip67 power supply has full input voltage, the tail of the wire is peeled and then covered with the tin .
Specification of slim power supply 12v 48w
SPECIFICAION
MODEL
SMT-012-048VW
SMT-024-048VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
4.0A
2.0A
CURRENT RANGE
0~4.0A
0~2.0A
RATED POWER
48W
48W
RIPPLE&NOISE(max)
120mVp-p
200mVp-p
voltage TOLERANCE
12V±5%
24V±5%
SETUP RISE TIME
60ms/110VAC
60ms/110VAC
HOLD UP TIME(Typ.)
20ms/230VAC
10ms/110VAC
INPUT
VOLTAGE RANGE
100~265Vac
100~265Vac
FREQUENCY RANGE
50~60Hz
50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
﹥83%
﹥84%
AC CURRENT(Typ.)
0.45A/110V, 0.25A/220V
0.45A/110V,0.25A/220V
INRUSH CURRENT (Typ.)
COLD START 30A/110~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@110%~150% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-25~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~90% RH non condensing, refer to IP67
Vibration
10~500Hz，2G 10min/1cycle,period for 60min,each along X,Y,Z axes
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008
WITHSTAND VOLTAGE
I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC
EMC Test Standards
EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
MTBF
50KHours （25℃）
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label
 |
 |
 |
 |

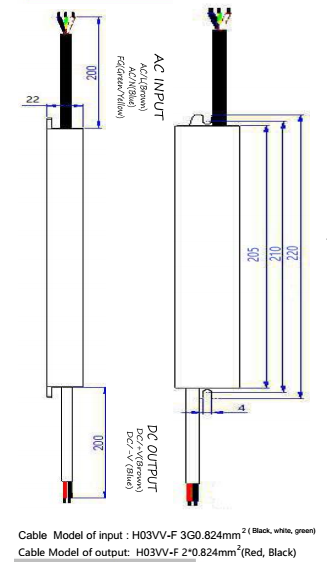

Mechanical Specification of led power supply outdoor
Features of 12v 48w ip67 power supply
IP67 design for indoor or outdoor installations
Cooling by free air convection
100% full load burn-in test
Suitable for LED lighting
Protections:Short circuit/Overload/Over temperature
Products through ETL,CE,RoHS Certification
2 years warranty
