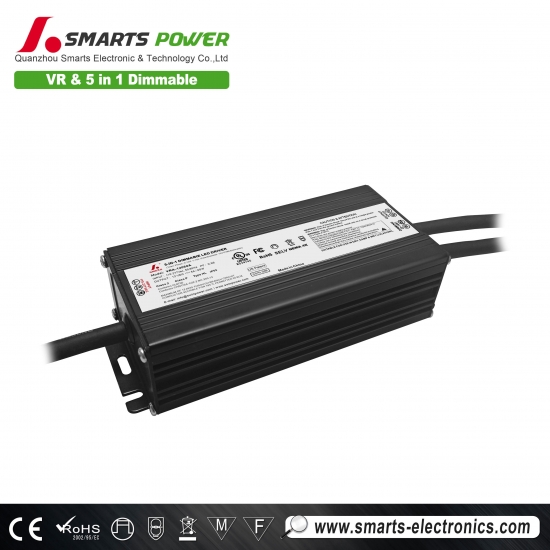

12v/24v/48v volt 80w TRIAC & 0 10v dimmable constant voltage led driver strip light power supply
This triac & 0 10v dimmable led power supply 110-277vac output mode, aluminum casing, good heat dissipation, built-in active PFC function, with 5 years warranty
Specification
| Model Number | VRA-12080A | VRA-24080A | VRA-48080A |
| Output Type | |||
| Reted Power | 80W | ||
| Reted Voltage | 12V | 24V | 48V |
| Reted Current | 6.66A | 3.33A | 1.66A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input Type | |||
| Voltage Range | 110-277V | ||
| Frequency Range | 47-63HZ | ||
| Efficiency(Typ.) | 88%@120VAC 89%@277VAC | ||
| Total Harmonic Distortion | THD< 15%(@100% load) | ||
| Power Factor(typ.) | 0.99@120VAC 0.98@277VAC | ||
| AC Current(Typ.) | 0.85A | ||
| Inrush Current(Typ.) | 22A | ||
| Leakage Current | <0.5mA | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage,re-power on to recovery after over load is removed. | ||
| Over Load | Intelligently reduce the output voltage, auto-recovery after over load is removed. | ||
| Over Temperate | 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, Class 2 | ||
| Safety standards | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 182x63x38mm (L*W*H) | ||
| Packing | - | ||
 |
 |
 |
 |

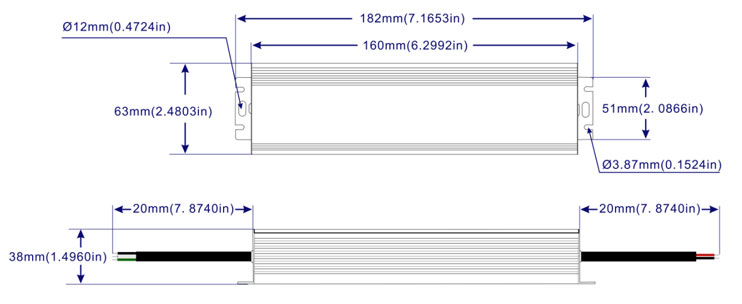

Mechanical Specification
Wire Specification
| VRA-A | Input | Output | 0/1-10V Dimming | ||||||
| Power | Function | Color | Spec. | Function | Color | Spec. | Function | Color | Spec. |
| 80W | AC L | Black | 18AWG | DC+ | Red | 18AWG | Dim+ | Purple | 18AWG |
| AC N | White | 18AWG | DC- | Black | 18AWG | Dim- | Gray | 18AWG | |
| Ground | Green | 18AWG | / | / | / | / | / | / | |

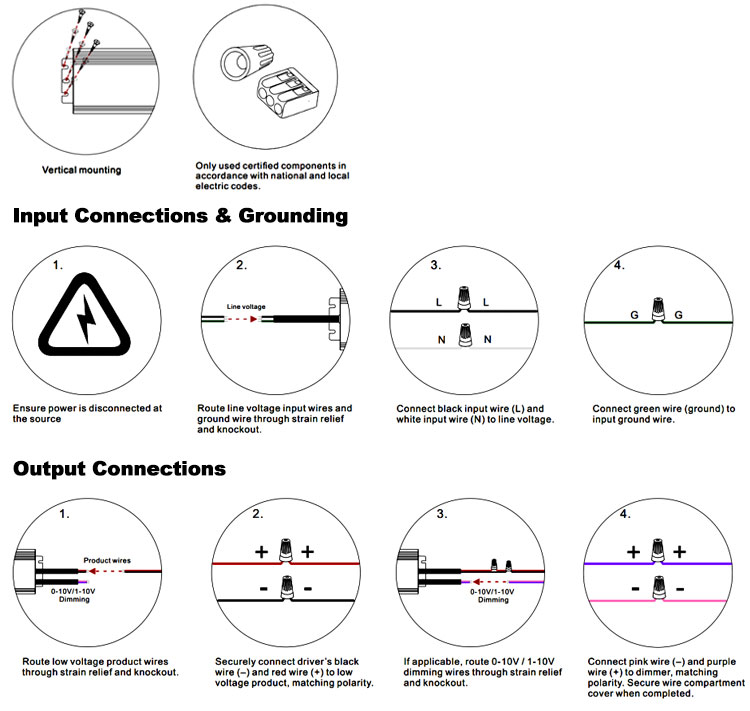

Mounting & Connection Preparation
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

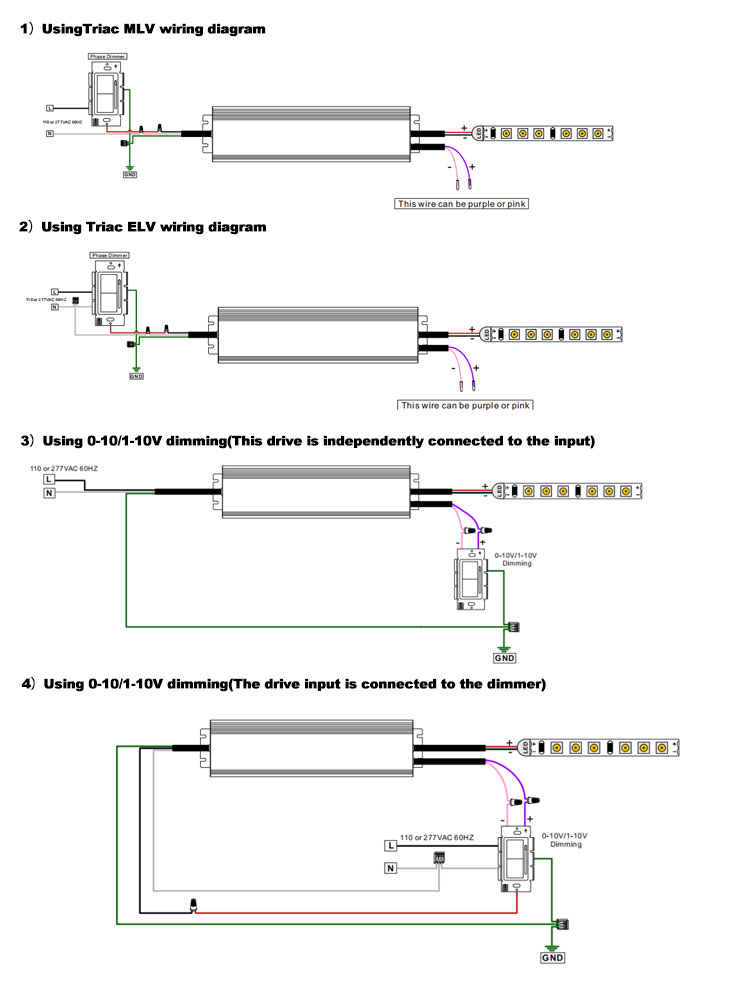

Connecting Diagram
Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Dimming operation
Related Products

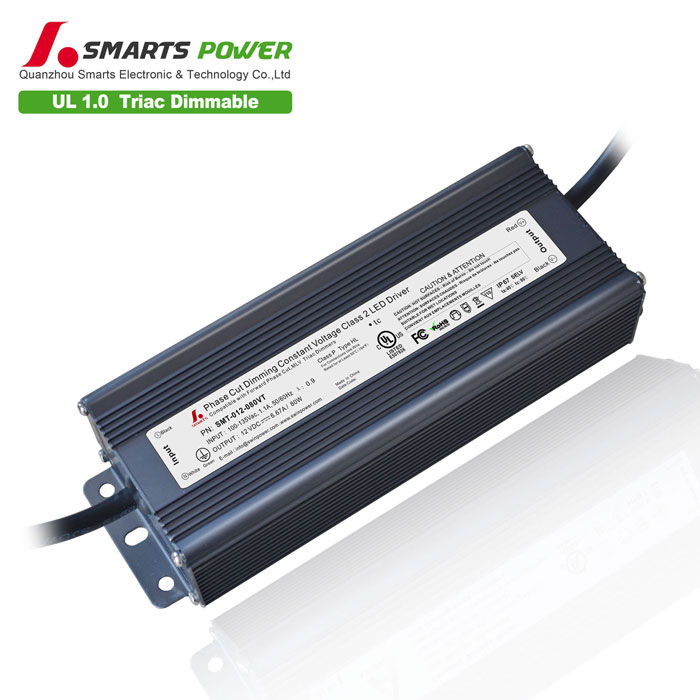

triac dimmable 80W led driver waterproof ip67, built-in short circuit/over temperature/overload protection function, in line with global safety lighting regulations
