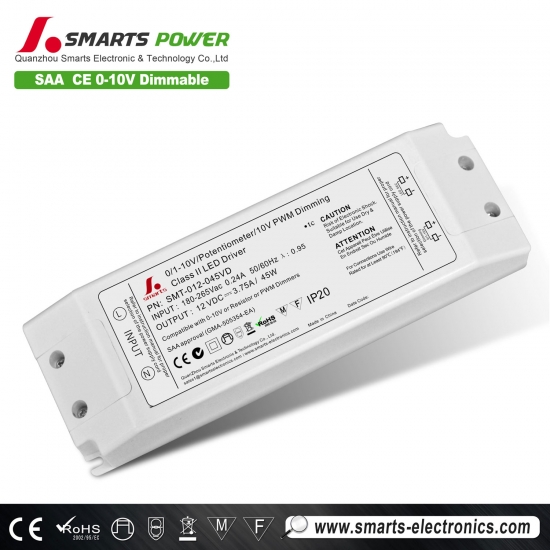

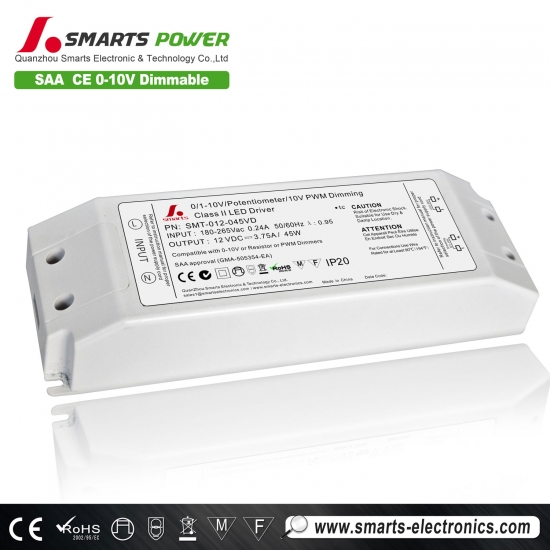

12v 24v 45w PWM/0-10v dimmable led driver with SAA CE ROHS approval
|
A series of pwm/0-10v dimmable led driver has high efficiency and low operation temperature.it is 100% full-load burn-in test. Our products are widely used in various industries, such as:INdoor LED illuminating lights,LED Neon,LED City Decoration,LED Lighting Advertising,LED Display,Controller Panels, etc |
Description
|
Model |
SMT-012-045VD |
SMT-024-045VD |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
|
|
|
Rated current |
0～3.75A |
0～1.875A |
|
|
Rated power |
45W |
45W |
|
Input |
Voltage Range |
180~265VAC |
|
|
|
Frequency Range |
50～60HZ |
|
|
|
Power Factor ( Typ.） |
PF≧0.80 |
|
|
|
Full Load Efficiency（Typ.） |
>88%/110V |
>88% 220V |
|
|
AC Current（Typ.） |
0.23A/110V |
0.11A/220V |
|
|
Leakage current |
﹤0.7mA/110V, 220VAC |
|
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
|
|
Over voltage |
≦280VAC |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|
|
Environment |
Working TEMP. |
-40～+50℃ |
|
|
|
Working Humidity |
20～95%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
|
|
Others |
Weight |
0.16Kg |
|
|
|
Size |
140*45*27mm（L*W*H） |
|
|
|
packing |
320*280*215mm/50pcs /CTN 145*50*36mm for inner box |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V,220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
