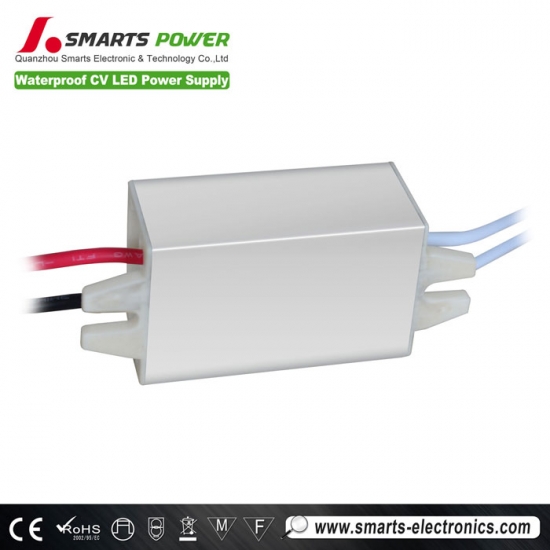

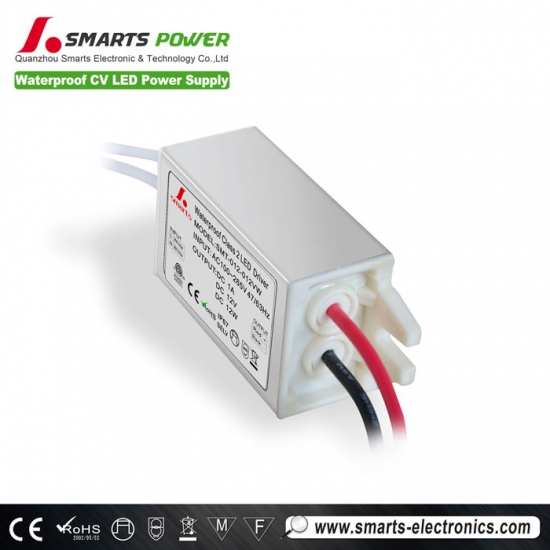

12v 1a constant voltage waterproof led drivers
12v 1a constant voltage waterproof led drivers is IP67 design for indoor or outdoor installations, Suitable for LED lighting, 24 Months warranty
Descriptions of led driver
- Input volt.:100~265vAC
- Efficiency>83%
- Warranty: 2 years
- CE,ROHS approval
- Size: 62*29*20 (mm)
- Net weight: 91g/pc
- Case material:aluminum
- Waterproof rate: IP67
MODEL
SMT-012-012VW
SMT-024-012VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
1A
0.5A
CURRENT RANGE
0~1A
0~0.5A
RATED POWER
12W
12W
RIPPLE&NOISE(max)
<700mV
<400mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
INPUT
VOLTAGE RANGE
90~265VAC
FREQUENCY RANGE
47~63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
>81%
>81%
AC CURRENT(Typ.)
0.20A @110VAC / 0.099A@220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.

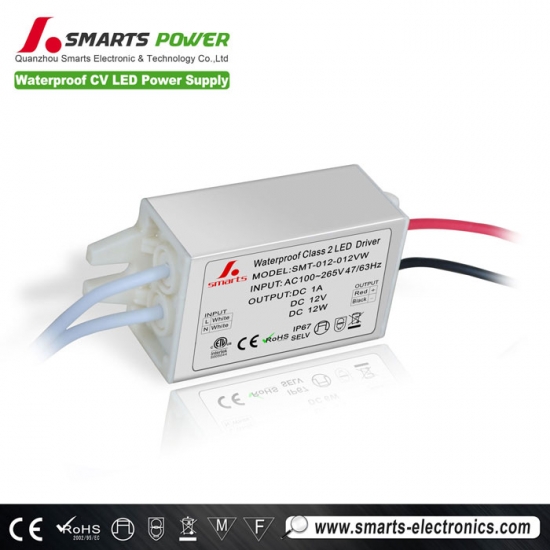

Label
Applications of 12v 1a led driver
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights,
- Controller Panels, etc
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd??
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with CE/Rohs approval
3). We give 3 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
