Non-dimmable LED Driver

100-265vac IP67 dc electronic led driver 12v 96w

Smarts' 12v 96w led electronic driver is ETL approved , and can be connected with indoor and outdoor led light, such as led strip, display etc.

  • item no.:

    SMT-012-096VW
  • lead time:

    about 7 days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, credit card ,western union
  • Input Voltage:

    100-265vac
  • Output Voltage:

    12vdc
  • Output Current:

    8a
  • Working Mode:

    constant voltage
  • Certification:

    ETL,CE
  • Warranty:

    3 years
inquiry now download
product details

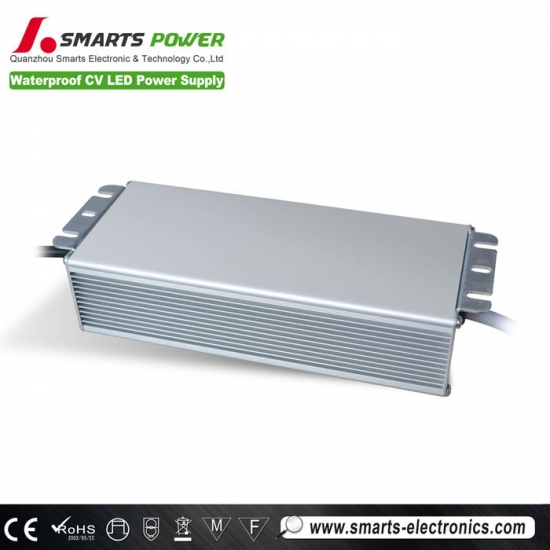

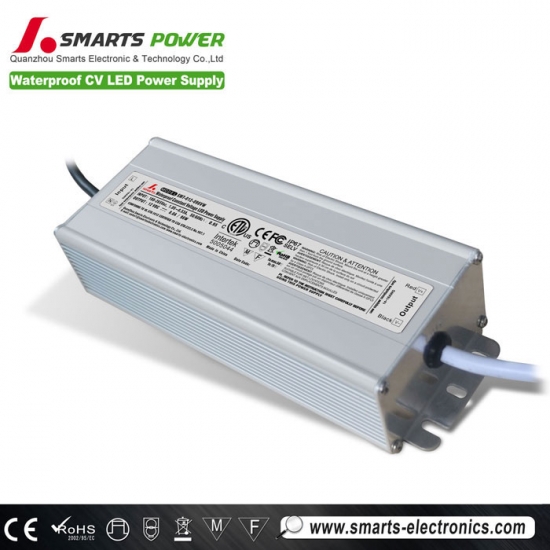

100-265vac IP67 dc electronic led driver 12v 96w



The IP67 12V 96w led electronic driver provides a constant Voltage of 12V DC and feature two distinct ports for input and output: the 100-265v AC input (black wire) has 3 wire connections: one for the live wire (black), one for the neutral wire (white) and one for the ground (green). The 12V DC output (white wire) features 2 connections: one positive (red) and one negative (black). this driver is compliant with worldwide safety regulations for lighting .




 SPECIFICAION
MODEL SMT-012-096VW SMT-024-096VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 8.33A 4A
CURRENT RANGE 0~8A 0~4A
RATED POWER 96W 96W
RIPPLE&NOISE(max) 150mV 150mV
VOLTAGE TOLERANCE ±0.5V ±0.5V
SETUP RISE TIME 80ms/110V,220VAC
HOLD UP TIME(Typ.) 60ms/110V,220VAC
INPUT VOLTAGE RANGE 100~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.) 0.95
EFFICIENCY(Typ.) ﹥87%
AC CURRENT(Typ.) 0.92A/110VAC, 0.86A/220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof IP67)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE ETL Mark(LVD)
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
    capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 Label   IP67 dc electronic led driver 12v 96w


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver




 Product Specifications of 12v 96w dc led driver


•Input: 100-265V AC
•0.92A/110VAC, 0.86A/220VAC
•Output: 12V DC 8A
•Wattage: 96W
•Waterproof: IP67
•Input Efficiency : 88%
•Working Temperature: -30℃ to +50℃, 20%-99%RH
•Dimensions: 185×69 43mm(L×W×H)
•Carton Qty : 20PCS/CTN
•Weight: 0.9KG/PCS
•Warranty: 3 years

 Features of 12v 96w led electronic driver


•Constant voltage style power supply
•Universal AC input/ Full range
•Protections: short circuit, over load, over temp
•Cooling by free air convection
•Fully encapsulated with IP67 level
•100% full load burn-in test
•Small volume, low weight, high efficiency

 Warnings of led driver 12v 96w


Don't open or modify the led power supply.
Please use it under professional electrician's guides.
Any abuse or improper use will void warranty.
Please leave children, kids far away from high voltage power source.



 NOTE


1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.


2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.


3.Tolerance:includes set up tolerance,line regulation and load regulation.

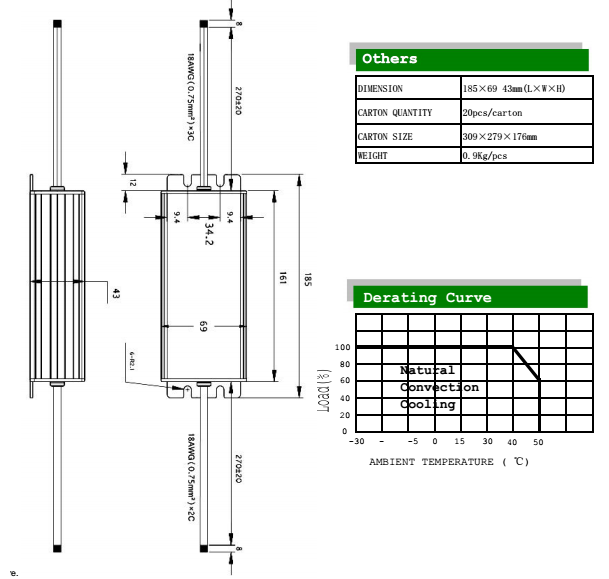

 Mechanical Specification of 12v 96w led electronic driver


led electronic driver






 Delivery details


1. UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive

2. Air transportation which takes about one week to arrive.

3. Sea transportation takes about one month to arrive, depending on your actual requirements.
