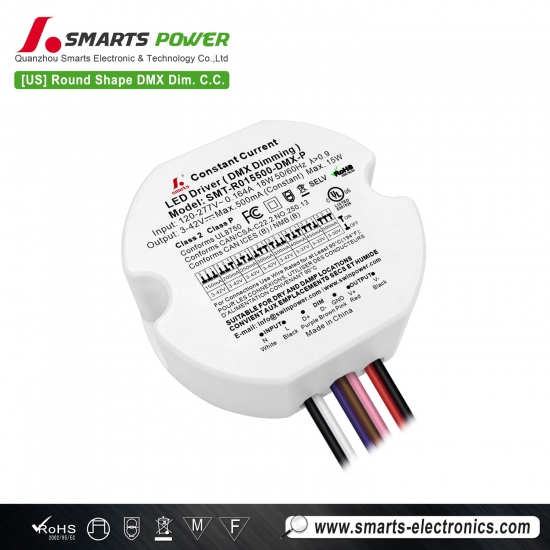

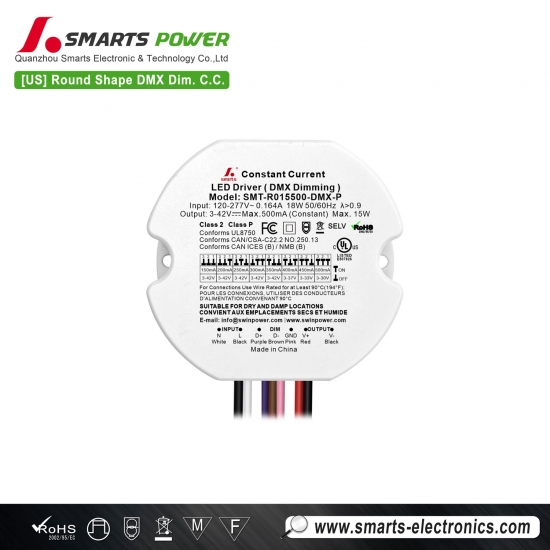

Zero Flicker 15W DMX512 Dimmable Constant Current Round LED Driver
the 15W constant-current driver delivers, on a DMX512 network with RDM addressing. Set 150–500mA by DIP switch, then dim flicker-free from 1% to 100%. The compact round plastic body installs fast in dry and damp locations, and convection cooling stays silent during shows. 7-year warranty.

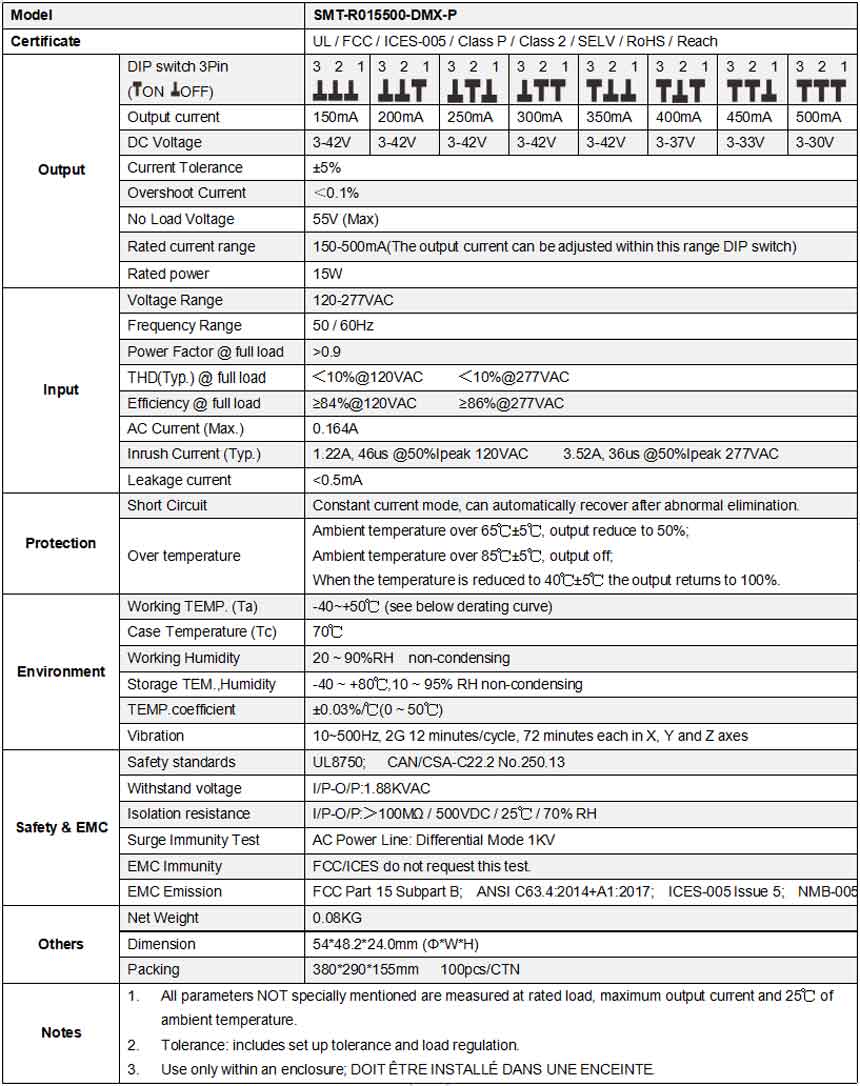

Specification
 |
 |
 |
 |

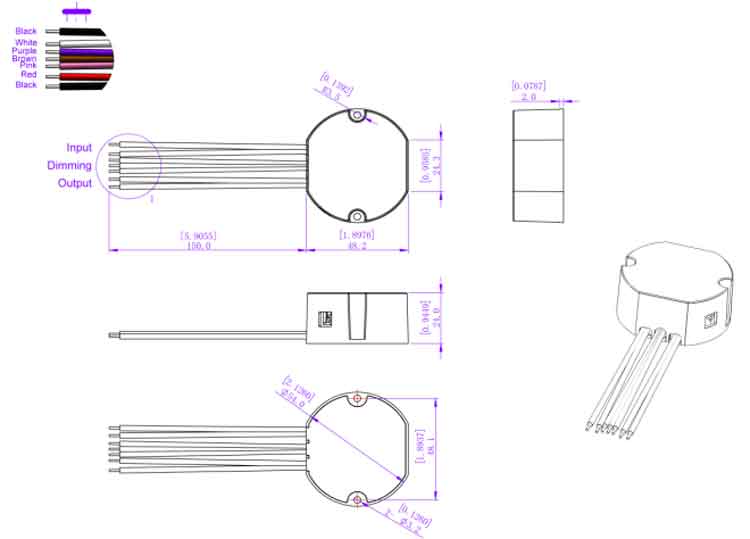

Mechanical Specification

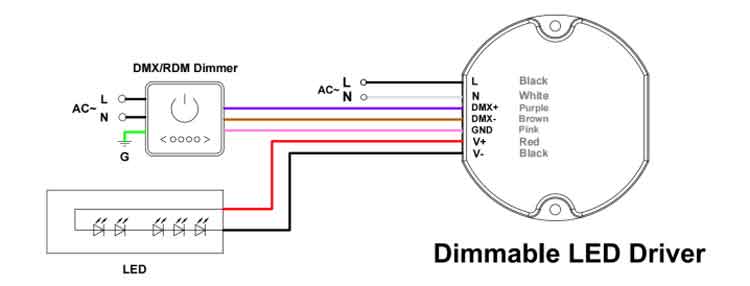

Dimming Operation
Related Products
Bring dynamic, flicker-free control to display cases, under-cabinet runs, and signage with the 15W constant-voltage round driver. DMX512 handles dimming across a 1–100% range at 1% depth, while RDM sets the address from your controller and the DIP switch adapts the output.
Mode：SMT-R12015-DMX-P intput voltage：100-277vac
Size : 54*48.2*24MM |
