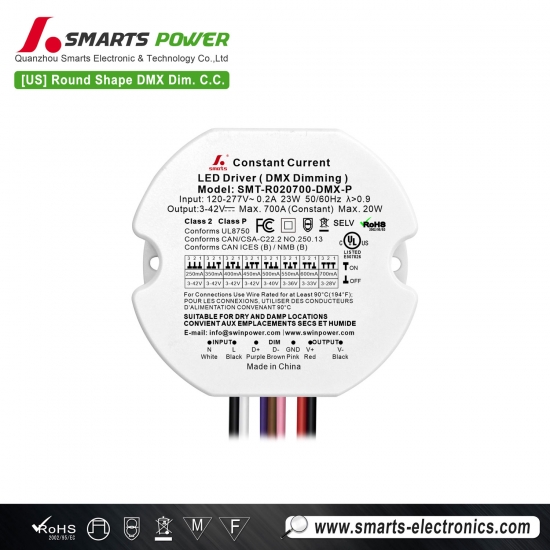

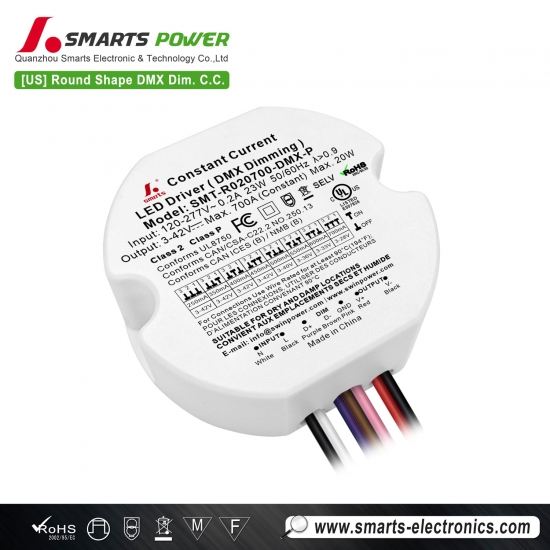

20W DMX512 Dimmable Constant Current Round LED Driver Lighting to Facade Accents
Whether it's a lobby cove that pulses with the music or a building edge on a DMX512 loop, the 20W constant-current driver keeps up. Choose 250–700mA by DIP switch, assign the address remotely with RDM, and dim smoothly from 1% to 100% without flicker. The compact plastic housing suits dry and damp locations; fanless cooling runs silent. 7-year warranty.

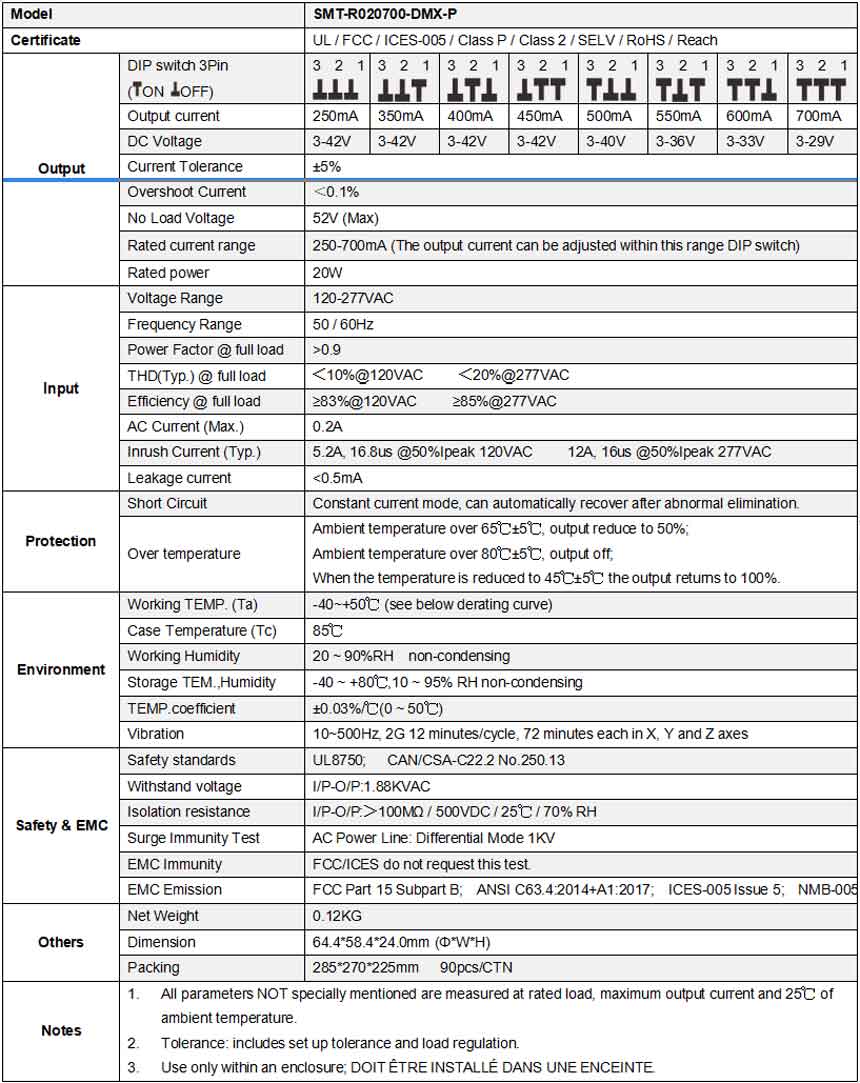

Specification
 |
 |
 |
 |
Mechanical Specification
Dimming Operation
Related Products
15W DMX CC LED Power Supply the 120–277VAC input with PF correction and up to 80% efficiency keeps it efficient. Short-circuit and over-temperature protection plus fanless cooling. Dry/damp rated; 7-year warranty.
Mode：SMT-R015500-DMX-P intput voltage：100-277vac
Size : 54*48.2*24MM |
