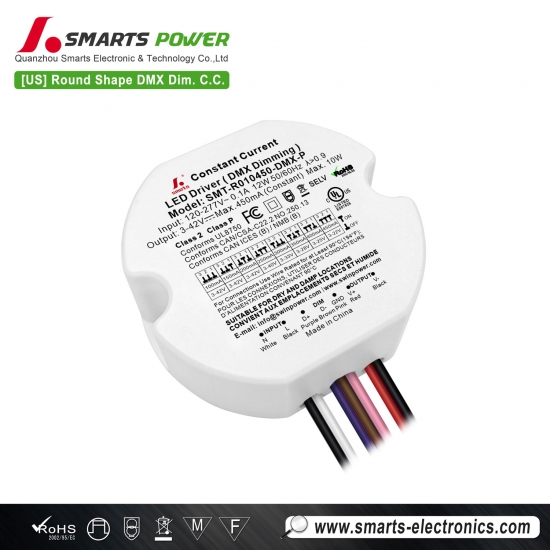

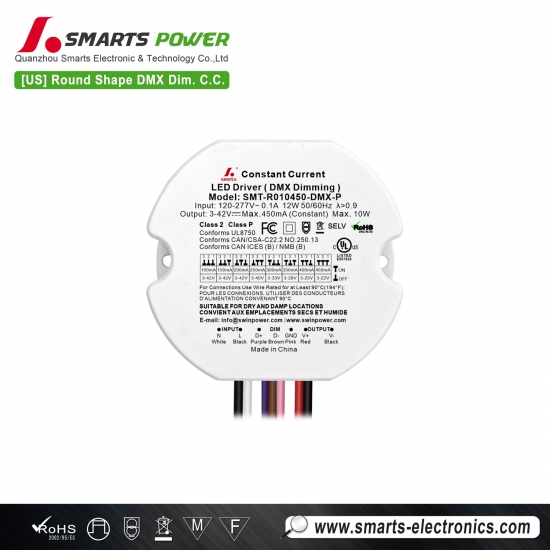

120-277V DIP-Switch Adjustable Output 10W non-dimming constant current LED driver
Pixel dots, mini accent lights, and compact props on a DMX512 rig all benefit from the 10W constant-current driver. Match the module with a DIP-set 100–450mA output, address it remotely over RDM, and dim smoothly from 1% to 100% without flicker. The small round plastic housing hides in tight spaces and suits dry and damp locations. Silent fanless cooling, 7-year warranty.

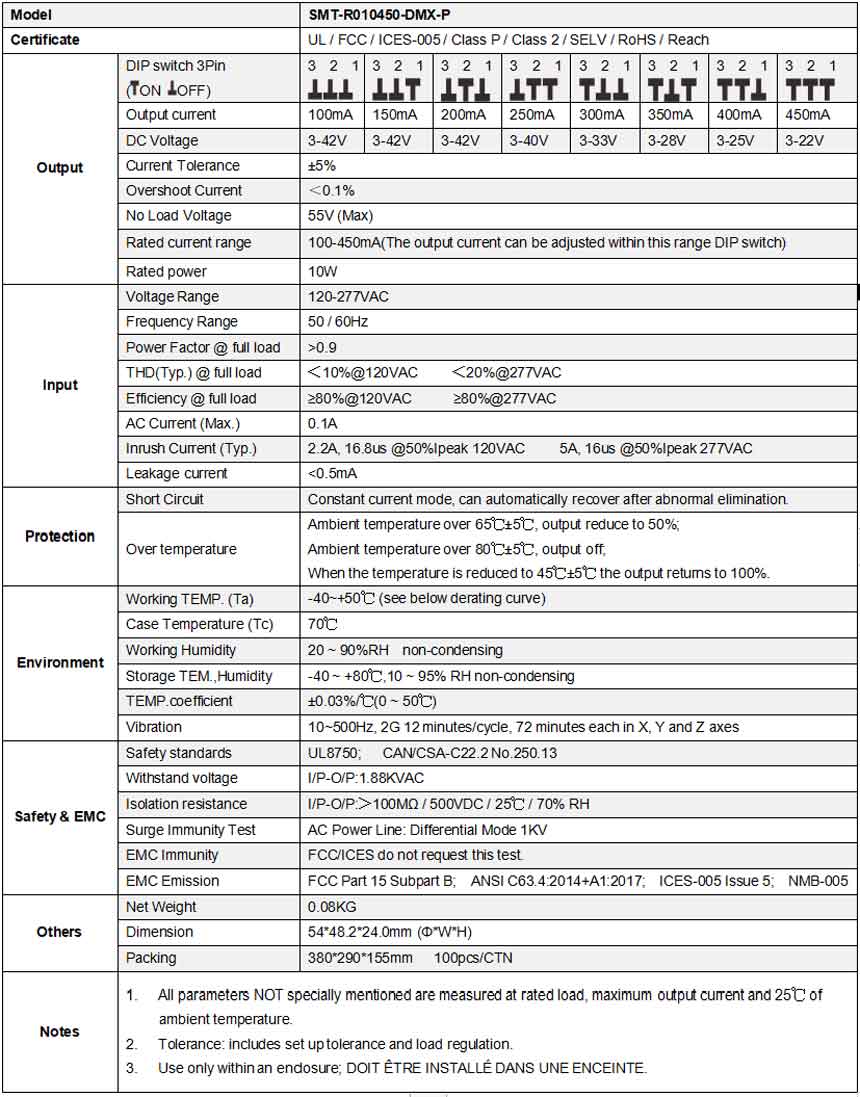

Specification
 |
 |
 |
 |
Mechanical Specification
Dimming Operation
Related Products
Drop DMX512 dimming into your 12V/24V LED strips and accent lights with the 10W round plastic driver — flicker-free from 1% to 100% at 1% depth. The DIP switch sets the output to match the strip, RDM assigns the address from your controller ,
Mode：SMT-R12010-DMX-P intput voltage：100-277vac
Size : 54*48.2*24MM |
