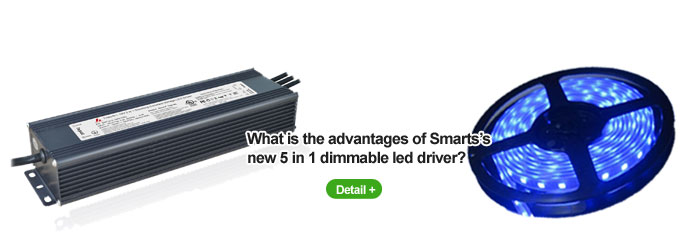

Smarts’s new 5 in 1 dimmable led driver with multiple dimming selectable: Triac/0-10V/1-10V/10V PWM/Potentiometer, also both voltage reduce mode and PWM dim mode. Voltage Reduce mode: 100%-0.01% dim, stepless dimming, flicker-free, PWM dim mode:100-0.1% dim, flicker-free.
•Universal input: 100-277Vac
•Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load
•Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
•Flexible wiring compartment to adjust the AC and DC wiring space
•Exclusive patent design of “Clamshell” junction box,low-profile
•UL cUL listed, Class 2, Class P, Type HL, FCC, NEMA 4X, CE, RoHs
•NEMA 4X for indoor and outdoor use; Wet, damp, and dry location,
•Title 24 JA8 compliant
•Super low loading request, works perfect at 10-100% load.
•Short-circuit, over-temperature, over-load protection.
•7 years warranty
1）Voltage Reduce Output
Dimming range: 100%-0.01% Ultra Deep Amplitude
The output voltage peak is in the affordable value of the LED during driver on/off and dimming, no harm to the LED for long-term using, and slow down the speed of lumen depreciation.
Works with single channel CCT warm-dim LED strip/tape (2 wires).
synchronously dimming the LEDs with different starting voltages.
compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/tape....
