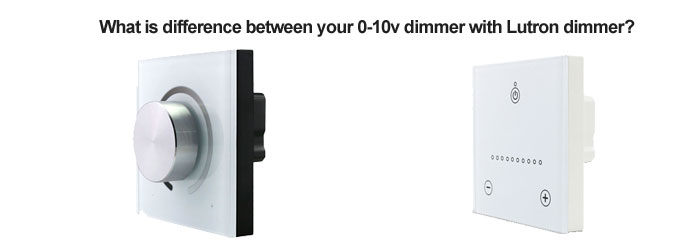

The 0-10V dimmer of Lutron, we have purchased some samples to test, they do not have output voltage, it is adjust by resistance, it is a simple resistance 0-10V dimmers. Meanwhile, it is only control the switch on and off for 0-10v led driver.

While our 0-10V dimmer is adjusting output voltage to come true dimming. It is difference with Lutron dimmers. The max.load switching capacity is 350Watt. The max. load current is 1.5Amp.

Our 0-10V rotary dimmer,when you twisting the knob meanwhile it start to control 0-10V signal to achieve dimming performance. This dimmer provide 50mA,user can calculate led driver consumption to know how many led driver can be controlled（eg:100w led driver consumption is 0.15mA,50/0.15 which mean can control about 300pcs led driver by this dimmer.） This dimmer also can be a switch when you connect led driver L/N wires. Product Dimension is 86*86*51mm(L*W*H)
