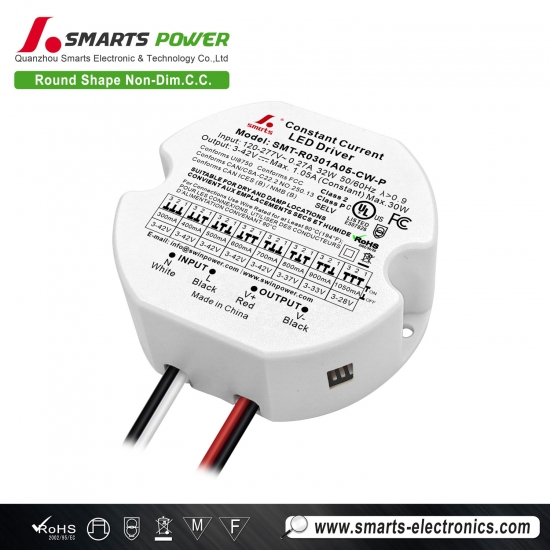

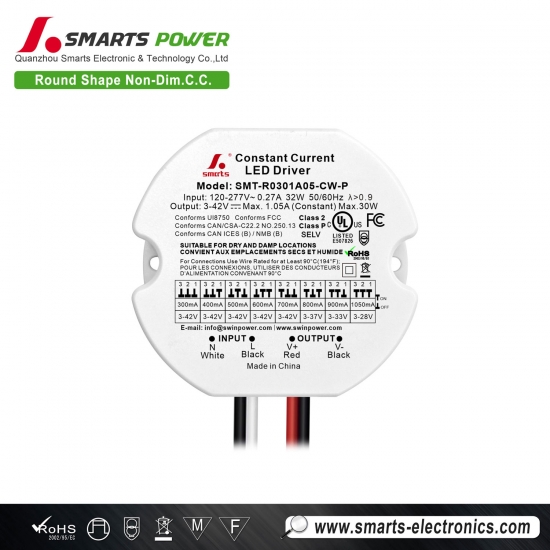

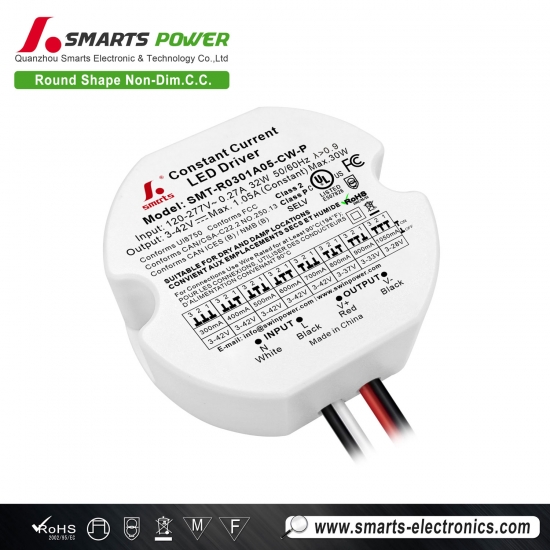

Round Shape 300–1050mA Selectable 30W Constant Current Round LED Driver
The 30W round plastic LED driver pushes constant-current output from 300 to 1050mA (DIP-selectable) across 3–42V. On a 120–277VAC input with power factor correction and up to 80% efficiency, it drives mid-power LED modules and fixtures steadily. Short-circuit and over-temperature protection plus fanless convection cooling deliver quiet, protected running in a dry/damp-rated round shell. Non-dimming; 7-year warranty.

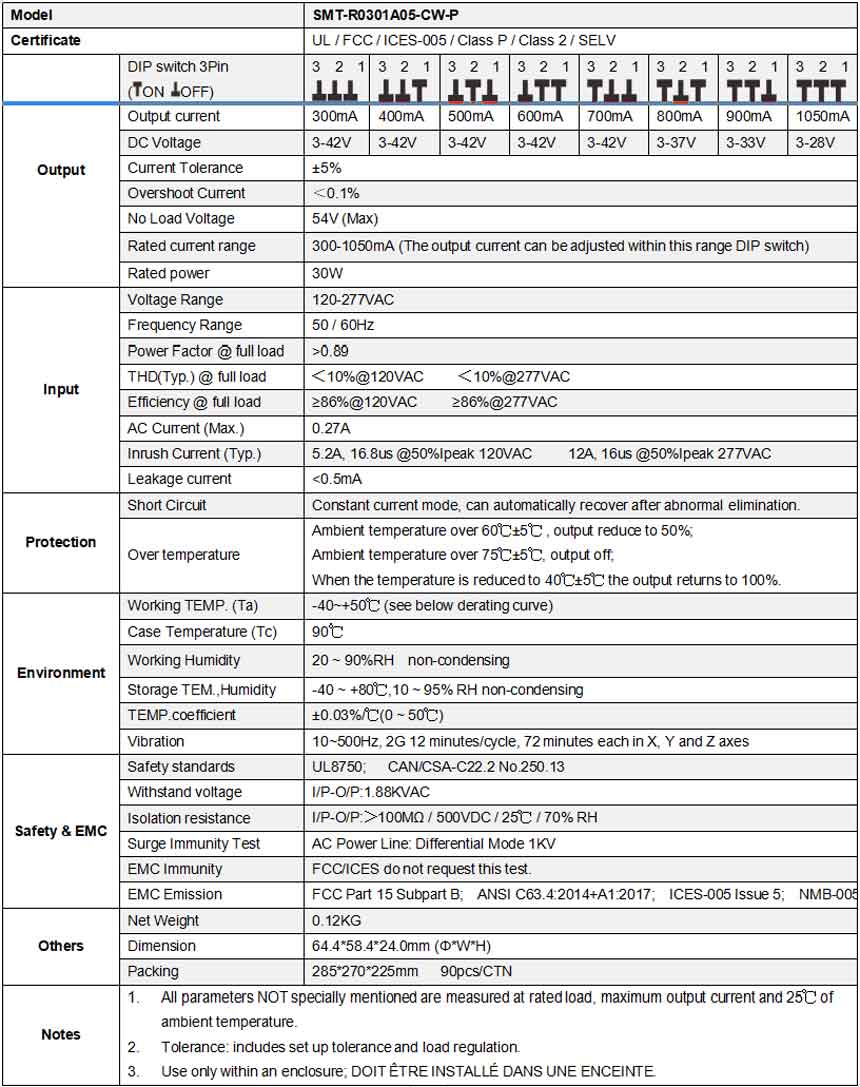

Specification
 |
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
Dimming Operation
Related Products

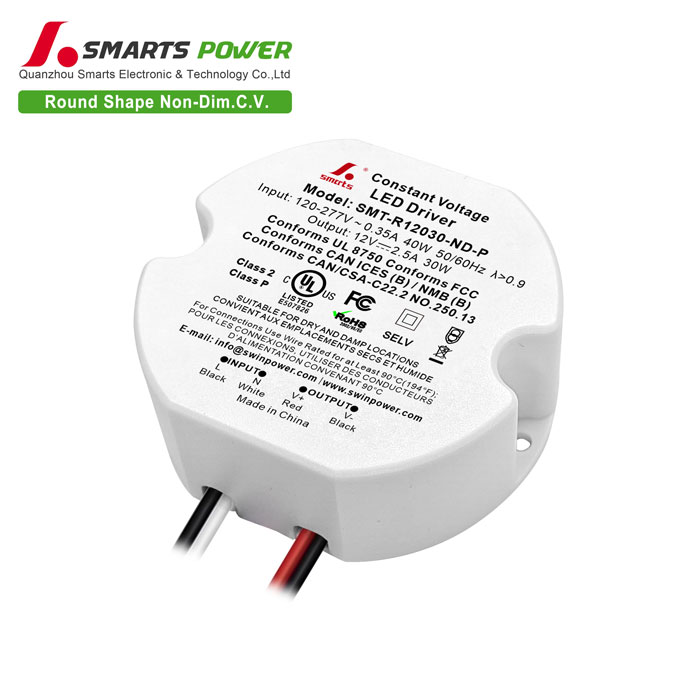

The 30W round LED driver delivers the most constant-voltage power in the same small non-dimming body. Spanning 120–277VAC, it drives demanding LED strips and modules. Active PFC and up to 86% efficiency keep it efficient and cool; short-circuit and overload protection add safeguards. Fanless convection cooling, dry/damp-rated plastic housing, 7-year warranty.
