Non-dimmable LED Driver
Non dimmable Constant Voltage LED Driver
home >Round Shape / Small size LED Driver >Non dimmable Constant Voltage LED Driver >

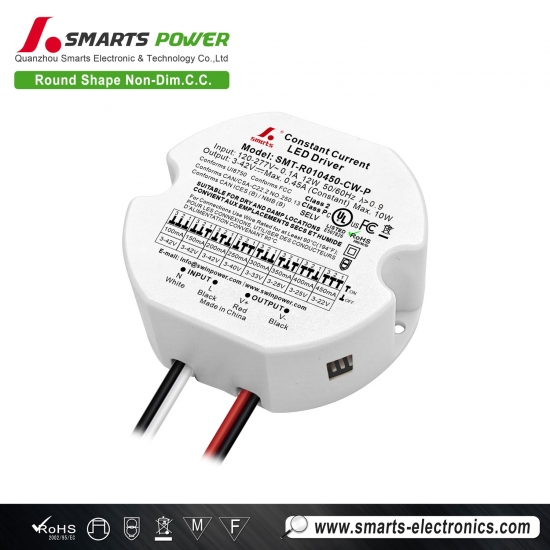

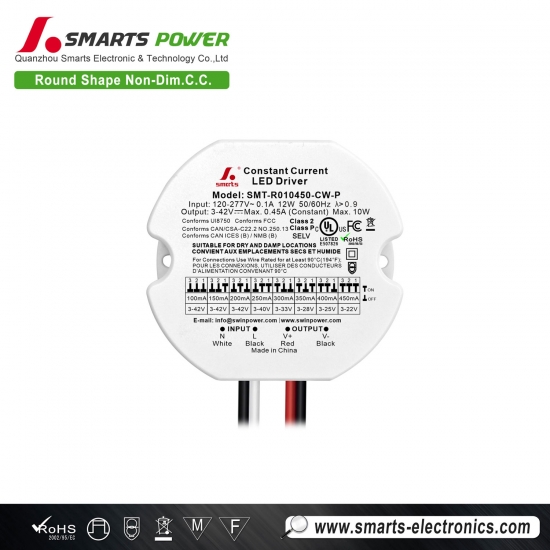

120-277V DIP-Switch Adjustable Output 10W non-dimming constant current LED driver


120-277V DIP-Switch Adjustable Output 10W non-dimming constant current LED driver


This 10W constant-current LED driver unit covers 100–450mA at 3–42V, powered from 120–277VAC with PF correction. Short-circuit and over-temperature protection plus silent free-air convection make it a set-and-forget fit for downlights, panels, and small LED modules. Compact round plastic shell rated for dry and damp locations; 7-year warranty.


  • item no.:

    SMT-R010450-CW-P

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Current:

    100-450mA

  • Working Mode:

    Constant Current

  • Certification:

    UL,FCC, CE, ROHS

  • Warranty:

    7 years
inquiry now
product details

120-277V DIP-Switch Adjustable Output 10W non-dimming constant current LED driver

This 10W round plastic LED driver delivers constant-current power with a DIP-switch selectable output from 100 to 450mA across a 3–42V range — one driver for multiple LED loads. The 120–277VAC input with power factor correction (>0.9) and up to 80% efficiency keeps it efficient, while short-circuit and over-temperature protection guard the circuit. Fanless convection cooling, dry/damp-rated housing, 7-year warranty.

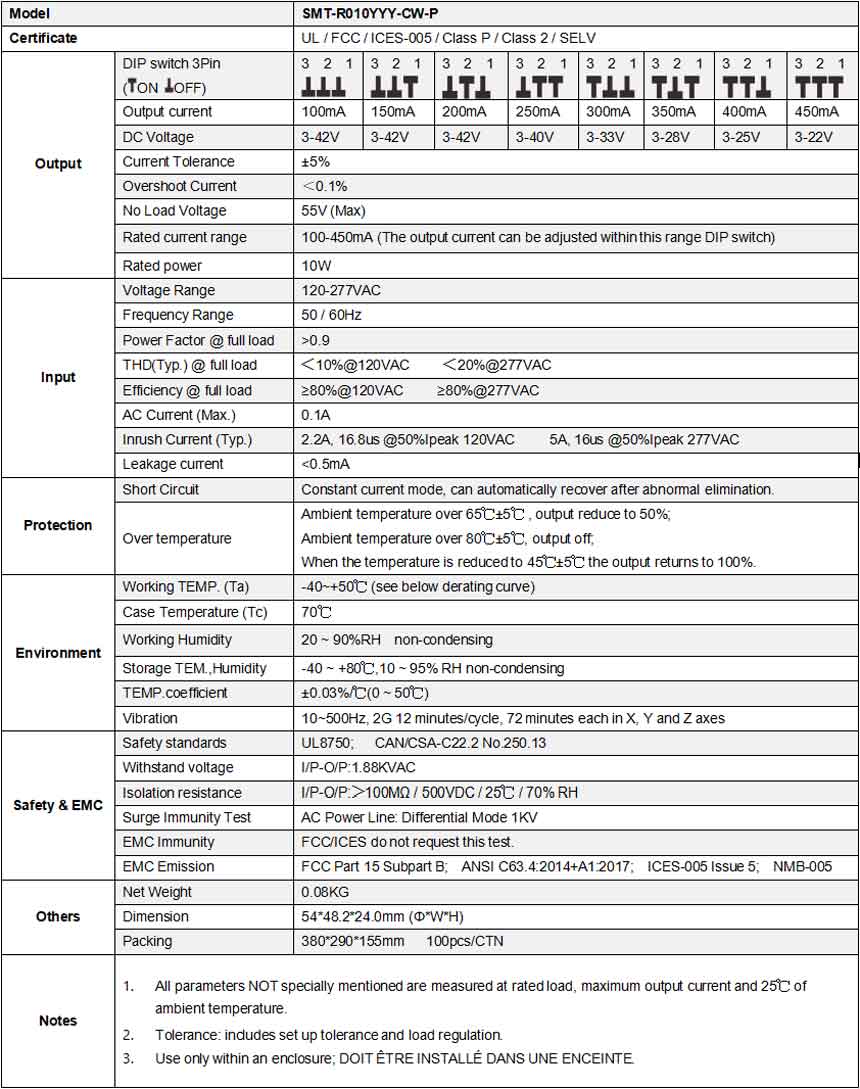

  Specification


Click Send Email for Details
 Click Teams 24 hours Online Reply
 Scan to start our communication
Back to top

  Mechanical Specification

American wire gauge
CO4C
Input wire Black(L) White(N) (2*18AWG)
Output wire Red(V+) Black(V-) (2*22AWG)


  Dimming Operation


  Related Products

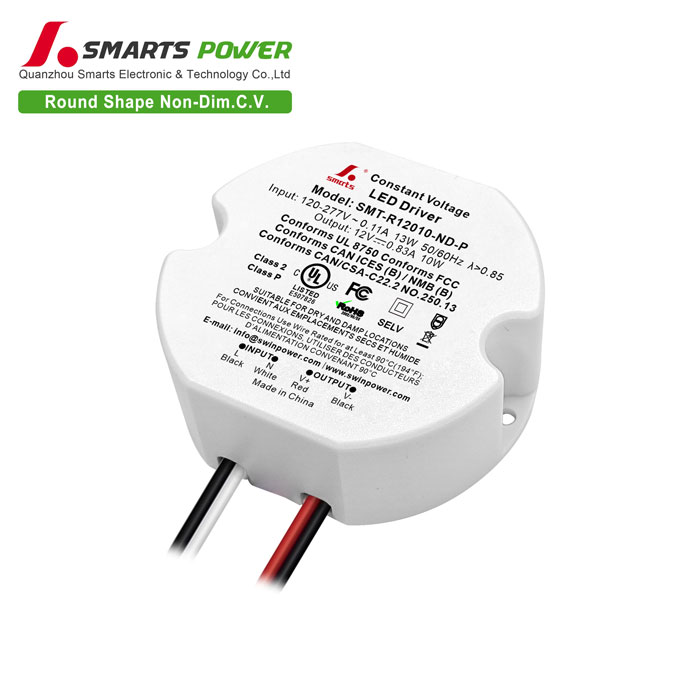

The 10W round plastic LED driver delivers steady constant-voltage power in a compact, fully enclosed shell. Its 120–277VAC input covers both 120V homes and 277V commercial circuits, while built-in active PFC and up to 86% efficiency keep it cool and efficient. 7-year warranty.



Mode：SMT-R12010-ND-P

intput voltage：100-277vac

Size : 54*48.2*24MM
 output voltage：12vdc
Weight：0.103Kg/pcs

Send Us An Inquiry

We will contact you as soon as possible!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

categories
hot products
related products
10w led driver 12v Simple Damp-Safe 10W Round Shape Constant-Voltage LED Power Supply
This 10W round LED driver delivers stable constant-voltage output in a compact full-plastic housing. Its 120–277VAC input covers both 120V residential and 277V commercial systems. Built-in active PFC and up to 86% efficiency cut energy waste, while short-circuit and overload protection keep fixtures safe. Fanless free-air convection cooling means silent, maintenance-free operation. Rated for dry and damp locations, it's ideal for small LED fixtures and accent strips. 7-year warranty.
15w led driver 12v Reliable in a Minimal 15W Non-Dimming Round LED Driver for indoor
The 15W round LED driver brings efficient constant-voltage output to small and mid-size LED setups. Covering 120–277VAC, it fits any North American wiring — home, retail, or office. Active PFC and 86% efficiency reduce waste, while short-circuit and overload protection shield your LEDs. Fanless convection cooling runs silent, and the sealed plastic housing is approved for dry and damp locations. 7-year warranty.
20w led driver 12v Round Shape 20W Plastic Constant Voltage LED Power Supply 7-Year Warrantied
The 20W round LED driver adds headroom for bigger fixtures. Constant-voltage output across 120–277VAC suits residential, commercial, and light industrial use. Active PFC and up to 86% efficiency keep power clean and costs low; short-circuit and overload protection guard the install. Natural convection cooling is fanless and silent. Compact full-plastic shell rated for dry and damp locations, with a 7-year warranty.
20w led driver 12v More Power Small Size 25W Non-Dimming Constant Voltage Round LED Driver
From bathroom vanities to covered patios, the 25W round plastic LED driver is built where moisture meets power. The sealed enclosure is dry/damp-location rated; non-dimming keeps wiring simple. Active PFC, short-circuit and overload protection, up to 86% efficiency — all cooled silently by convection. Balanced power and peace of mind, backed by a 7-year warranty.
30w led driver 24v Round Series 30W Constant Voltage Round LED Driver Power Supply 7-Year Warrantied
Top of the series, the 30W LED driver offers the most output in the same compact non-dimming design. Constant-voltage output across 120–277VAC handles demanding LED strips and modules. Active PFC and up to 86% efficiency stay efficient and cool; short-circuit and overload protection add safeguards. Fanless convection cooling, dry/damp-rated plastic housing, 7-year warranty.
Best 150–500mA Output 15W Constant Current Round LED Driver for led lighting 150–500mA Output 15W Constant Current Round LED Driver for led lighting
The 15W round plastic LED driver outputs a DIP-switch adjustable 150–500mA across 3–42V, letting one unit serve several LED modules. Constant-current regulation on 120–277VAC with power factor correction and up to 80% efficiency keeps performance steady. Short-circuit and over-temperature protection plus fanless convection cooling ensure quiet reliability. Dry/damp-location rated, non-dimming, 7-year warranty.
Best 20W 250–700mA Adjustable Constant Current Round LED Driver Power Supply for indoor 20W 250–700mA Adjustable Constant Current Round LED Driver Power Supply for indoor
Stock less, cover more: the 20W constant-current LED driver spans 250–700mA via DIP switch, matching a range of LED loads on one compact round unit. Its 120–277VAC input and PF-corrected design suit both residential and commercial sites, while over-temperature and short-circuit protection guard every install.
Best Round Shape 300–1050mA Selectable 30W Constant Current Round LED Driver Round Shape 300–1050mA Selectable 30W Constant Current Round LED Driver
Stock one SKU instead of five. The 30W constant-current LED driver lets installers dial in 300–1050mA with a DIP switch, adapting to different LED modules on the spot. The 120–277VAC universal input, PF correction, and up to 80% efficiency keep it practical; over-temperature and short-circuit protection keep it safe. Silent convection cooling in a compact plastic housing rated for dry and damp locations. 7-year warranty.
