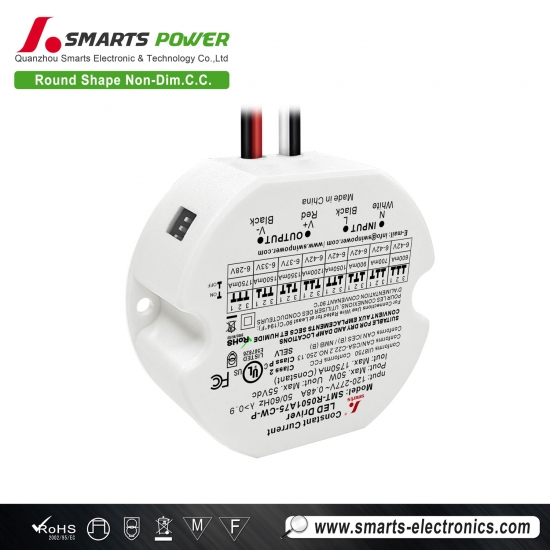

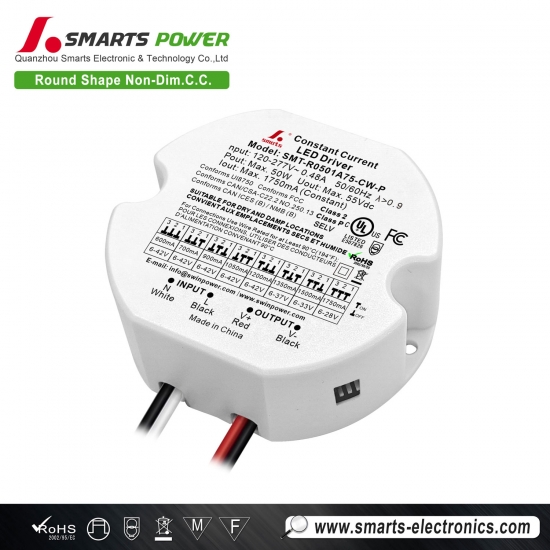

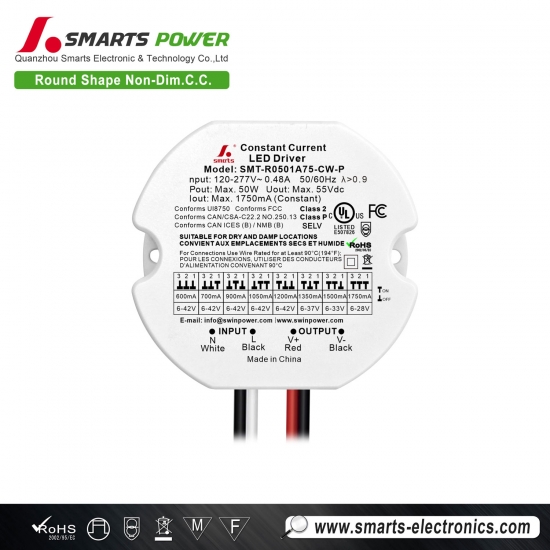

Maximum Power 50W Constant Current Round LED Driver 600–1750mA Selectable
The 50W constant-current LED driver is the workhorse of the round series. Set 600–1750mA by DIP switch across 3–42V to match heavy LED loads without swapping drivers. while short-circuit and over-temperature protection guard the system. Silent fanless cooling in a compact plastic shell rated for dry and damp locations. 7-year warranty.

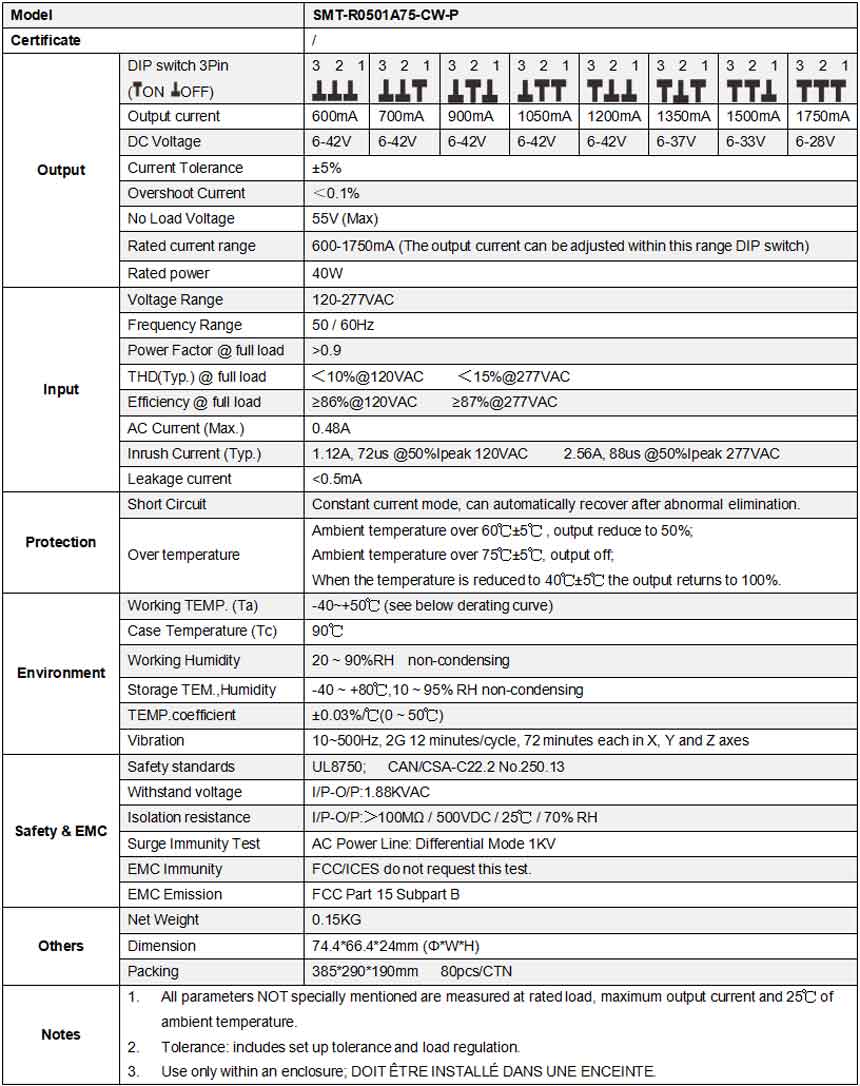

Specification
 |
 |
 |
 |

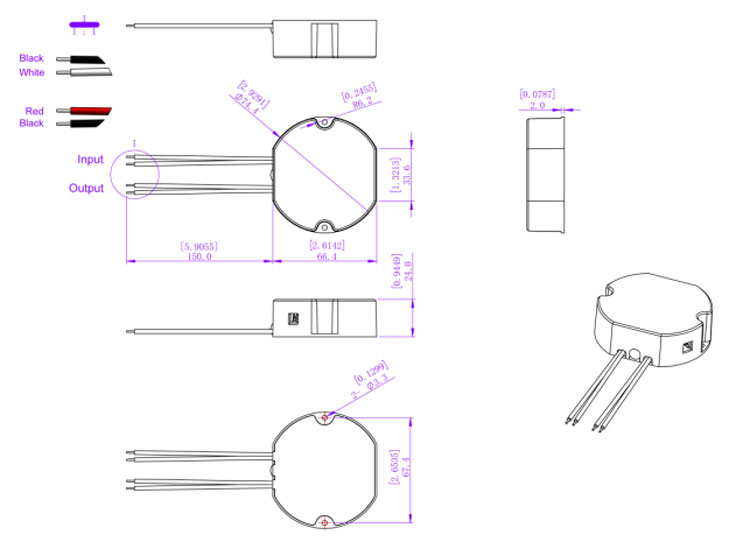

Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
Dimming Operation
Related Products

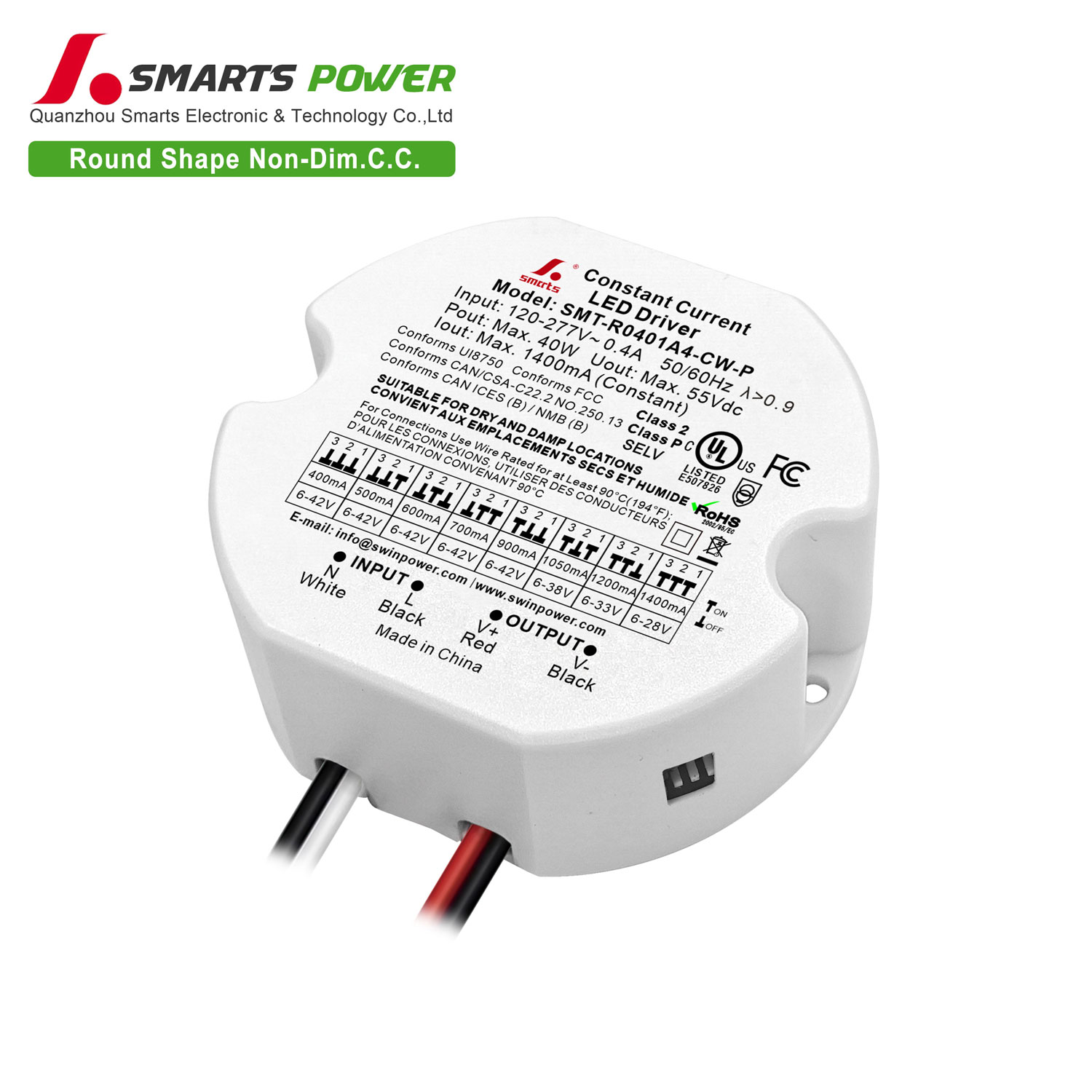

This 40W round plastic LED driver supports adjustable output current ranging from 400mA to 1400mA via DIP switches. With an efficiency of up to 80%, it is ideal for large LED modules and commercial lighting fixtures. It features short-circuit and over-temperature protection and operates silently through fanless natural convection cooling; the housing is suitable for dry or damp environments, ensuring reliable performance. It is non-dimmable and comes with a 7-year warranty.
Mode：SMT-R0401A4-CW-P intput voltage：100-277vac
Size : 74.4*66.4*24MM |
