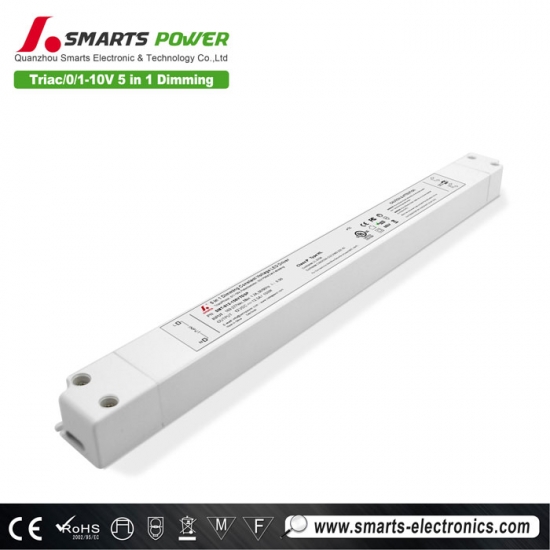

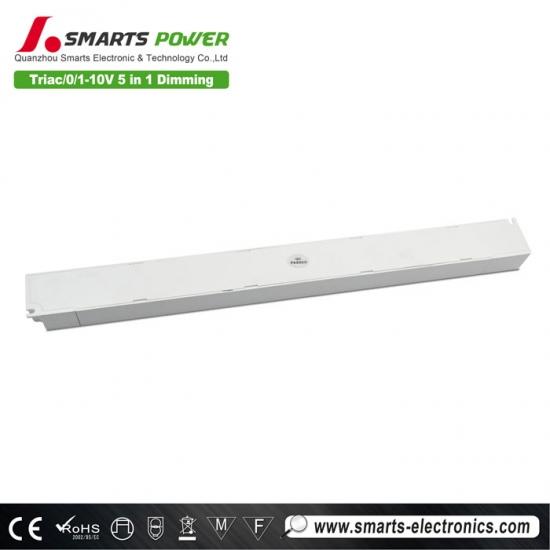

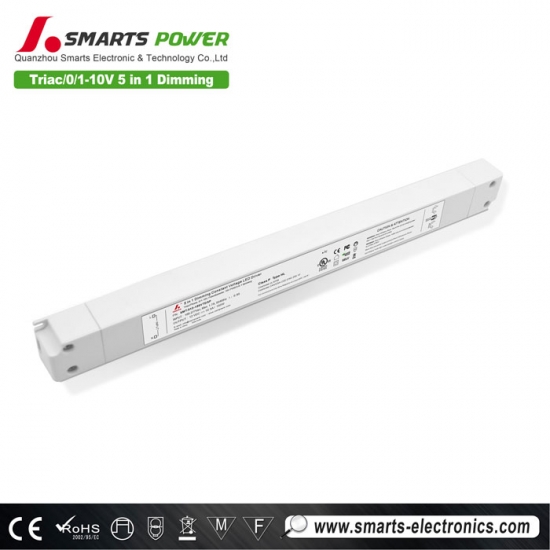

150w 24v triac dimmable constant voltage 12v led driver 0 10v dimming strip power supply
The new 5 in 1 dimming led driver 150W has two output modes to choose from, one is the switchable pwm or step-down output mode, and the other is the knob adjustable output voltage mode. Can be selected according to different needs of users, this power supply also has PFC function, power factor >0.95, constant voltage mode, with five years warranty, safe and reliable
Specification
| Model Number | SMT-012-150VTDSP | SMT-024-150VTDSP |
| OUTPUT | ||
| Rated Power | 150W | 150W |
| Rated Voltage | 12V | 24V |
| Rated Current | 12.5 | 6.25 |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| INPUT | ||
| Voltage Range | 110-277V | |
| Frequency Range | 47-63Hz | |
| Power Factor(typ.) | 0.99 @120VAC 0.98 @277VAC Full load | |
| Total Harmonic Distortion | THD< 10%@120VC/ THD< 15%@120VC 277VAC; | |
| Efficiency(Typ.) | 84% @ 120VAC 86% @277VAC | 85% @ 120VAC 89% @277VAC |
| AC Current(Typ.) | 1.8A | |
| Inrush Current(Typ.) | 29A | |
| Leakage Current | <0.5mA/ 120VAC`` | |
| PROTECTION | ||
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | ≤120% Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 ℃ | |
| Max. Case Temp. | Tcase=+90℃ | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||
| Dimension | 364x31x22.5mm (L*W*H) N.W:0.45kg | |
| Packing | 30pcs/CTN G.W:13.5KG SIZE: 385*270*185mm | |
 |
 |
 |
 |

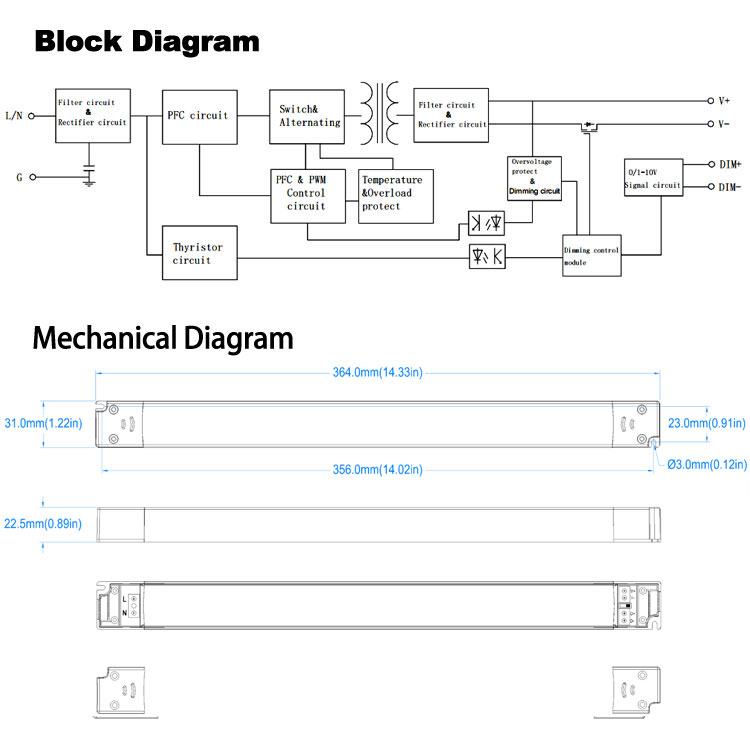

Mechanical Specification
Dimming operation
Related Products
|

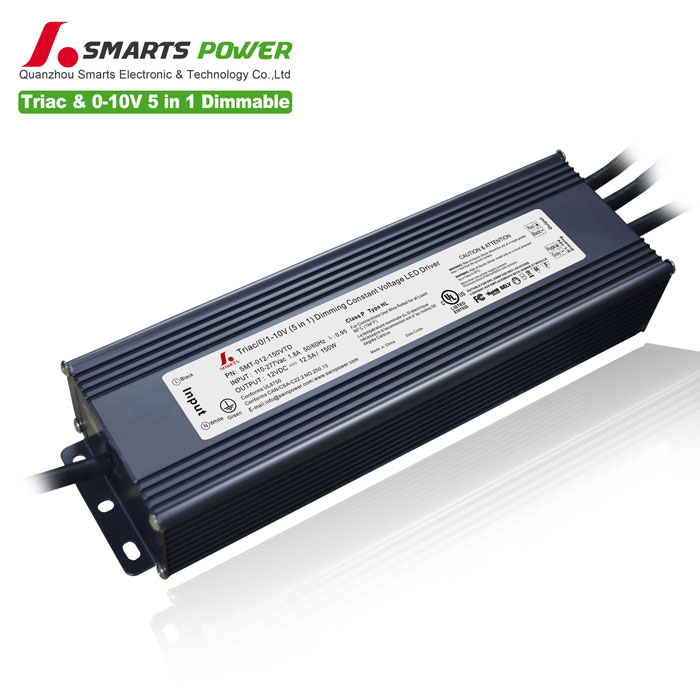

150w constant voltage led driver 12v output voltage 100-277vac aluminum case package waterproof class ip67, good waterproof performance, can effectively waterproof and dust
